Kit with Elma 6100EVSE multimeter and EVSE-200 adapter
In stock Few in stock Not in stock
This is a smart kit that combines the unique CP load reading from the Elma 6100EVSE with the charging station activation function of the Elma EVSE-200

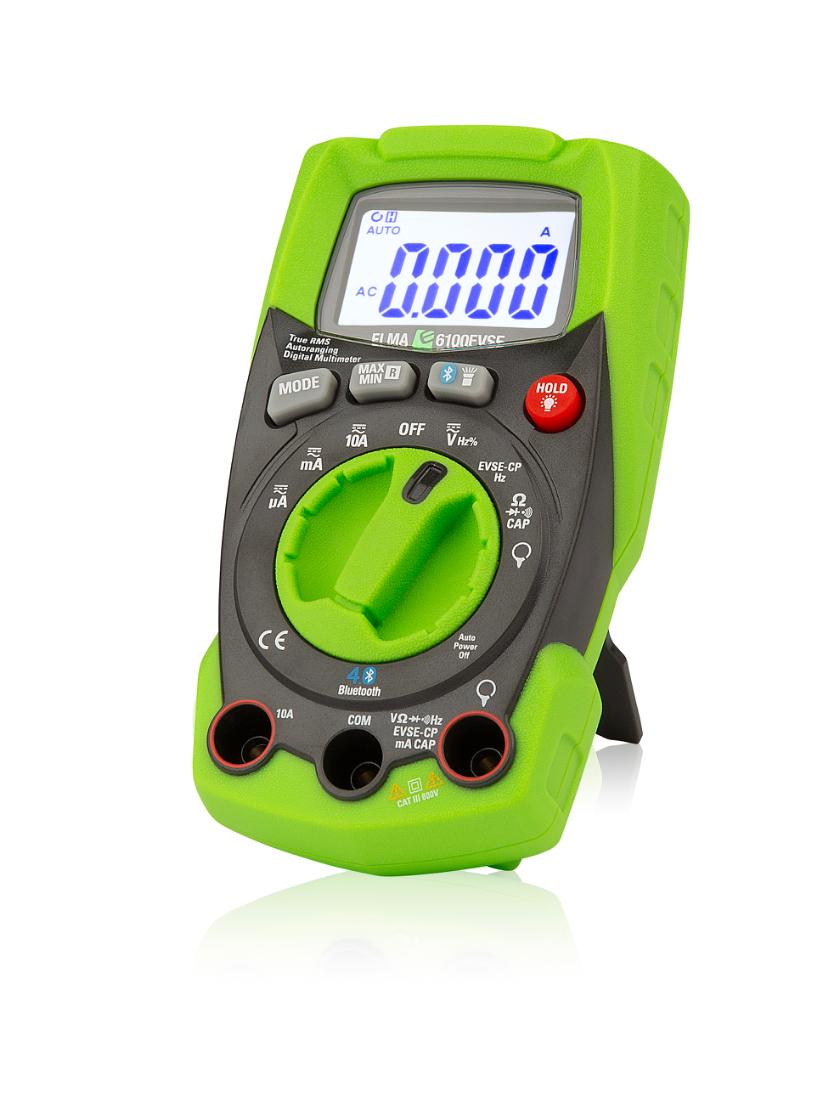

Elma 6100EVSE is a solid true RMS AC/DC mini multimeter with a Bluetooth function. The instrument measures current, voltage, frequency, capacity, resistance, and continuity. In addition, the instrument is equipped with a special area for external current clamp and the possibility of measuring up to 3000A with flex clamp (ElmaFlex 430).
The unique EVSE function in the Elma 6100EVSE also converts the CP signal from the EVSE charging socket for electric cars directly into an ampere value. If it is used e.g., with the Elma EVSE-200 (available as an accessory on this page), the CP DutyCycle signal from the charger can be read directly as amperes, instead of the classic Hz% signal. E.g. put the Elma EVSE-200 CP switches on 32A, which simulates that the car is "asking" for 32A, and read the electric car charger's response, directly as e.g., 16A.
With the Bluetooth function and the free APP Elma Link, which is available for both iOS and Android, the Elma 6100BT becomes a safe and smart documentation tool. See your display directly on your Android/iOS device and take measurements at a safe distance from dangerous voltage. View and record all values, curves, and graphs directly on the phone. You can save and attach image and comment on the measurement. You can share these on e-mail.
Elma 6100EVSE has a large, illuminated display and is equipped with a powerful LED flashlight, data hold max/min and auto power off. The instrument meets EN61010-1 CAT III 600 V standards and is supplied with test leads, batteries, and a manual.

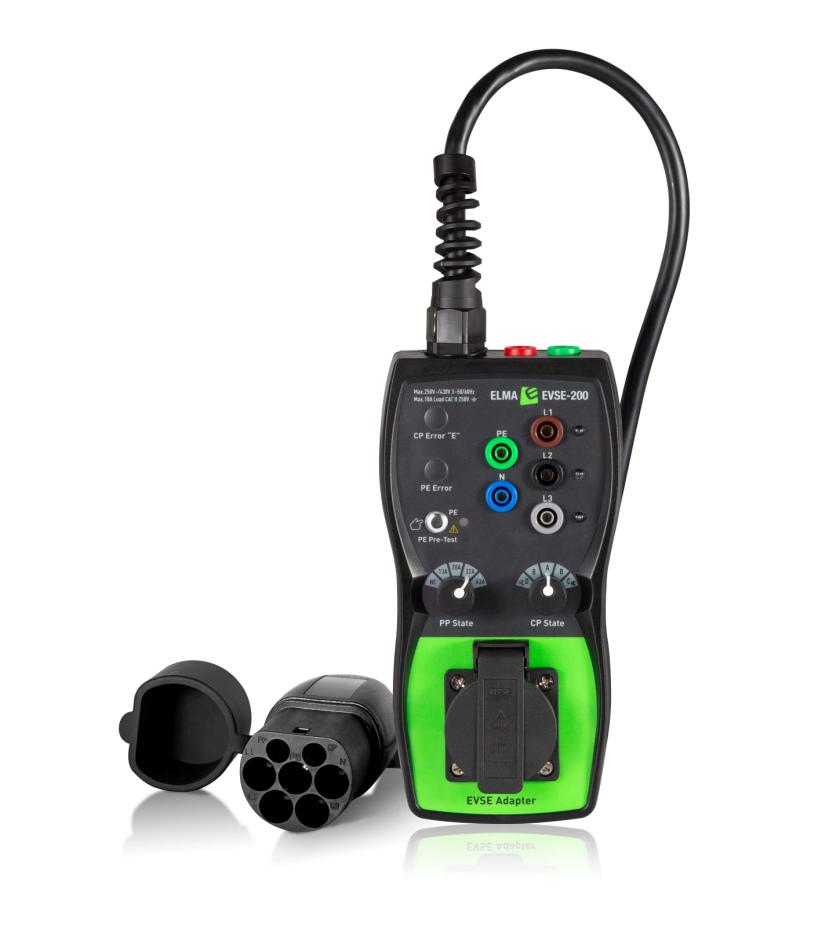

The Elma EVSE-200 adapter activates the charging station by simulating the connection of an electric car, and brings measurement points out into standard banana sockets. This way a simple function test whether stand can be activated is done with adapter alone, voltages can be measured with standard multimeter or full function test and installation test is done with a suitable installation tester.
Elma EVSE-200 also has several smart functions.
CP signal in banana sockets. An EVSE charger and electric car EV communicate via a frequency-modulated signal. Then the car (Elma EVSE-200) asks for e.g., about 32A, the charging plug may respond that 13A is available. This signal can be read with a standard multimeter with DutyCycle Hz% function, or with the ground-breaking Elma 6100EVSE, which directly displays the signal as a current. Find Elma 6100EVSE as an accessory on this page.
Elma EVSE-200 can also be connected to a load, e.g., a heating fan, up to 10A, directly into the socket on the adapter. This way, the charging plug can be tested under load, and connections can be checked with an infrared camera.
Elma EVSE-200 can also do fault simulation for missing PE connection and CP to PE fault. Thus, the adapter can only be used to check correct connection and functionality in the event of a fault.
The adapter is supplied with a standard type 2 plug and simple rotary switches for simulating both PP (load) and CP (Connection status) both vented (ABD) and non-vented (ABC) status. Delivered ready for use in a bag and can be advantageously used with installation testers from Elma instruments.
Technical data:
Download
Accessories
Elma EVSE-200 activates the charging point (EVSE), by simulating the connection of an electric vehicle (EV). Furthermore it provides the measuring points to standard banana sockets. The adapter itself can then perform a simple functional test, if charge point is activated, and full installatino test can be performed with any installation tester MFT, as the Elma EVSE-200 is universal.
Furthermore the EVSE-200 provides seve
Elma EVSE-200 activates the charging point (EVSE), by simulating the connection of an electric vehicle (EV). Furthermore it provides the measuring points to standard banana sockets. The adapter itself can then perform a simple functional test, if charge point is activated, and full installatino test can be performed with any installation tester MFT, as the Elma EVSE-200 is universal.
Furthermore the EVSE-200 provides several other clever functions:
CP signal to bananaplugs. EVSE and EV communicates throug Hz% modulated 1kHz square pulse signal. This signal can be read out throug the standard banana sockets in the adapter.
Elma EVSE-200 can also be connected to a load, like an electric heater, and carry a load of 10A, from the Schuko socket in the adapter. Thus the chrange point can be put under load for testing and trouble shooting, e.g. by one of our infrared cameras.
Elma EVSE-200 can also simulate faults, lige missing PE, CP-PE short etc. to test functions in the charger like auto reset.
The adapter is ready to use in nylon carry bag, including type 2 plug, simple turn-knob setting for PP (Load request) and CP (connection status) for ventilated (ABD) and un-ventilatet (ABC) chargers. The adapter is universal and can be used with any installation testers or any other electrical tester.
ral other clever functions:
CP signal to bananaplugs. EVSE and EV communicates throug Hz% modulated 1kHz square pulse signal. This signal can be read out throug the standard banana sockets in the adapter.
Elma EVSE-200 can also be connected to a load, like an electric heater, and carry a load of 10A, from the Schuko socket in the adapter. Thus the chrange point can be put under load for testing and trouble shooting, e.g. by one of our infrared cameras.
Elma EVSE-200 can also simulate faults, lige missing PE, CP-PE short etc. to test functions in the charger like auto reset.
The adapter is ready to use in nylon carry bag, including type 2 plug, simple turn-knob setting for PP (Load request) and CP (connection status) for ventilated (ABD) and un-ventilatet (ABC) chargers. The adapter is universal and can be used with any installation testers or any other electrical tester.
Elma EVSE-200 type 2 EV
EAN 5706445840632
EL-NR 6398215048
In stock Few in stock Not in stock
377.00 EUR Ex. VAT
Elma 6100EVSE is a solid true RMS AC/DC mini multimeter with Bluetooth function. The instrument measures current, voltage, frequency, capacity, resistance, and continuity. In addition, the instrument is equipped with a special area for external current clamp. It can measure up to 3000A with flex clamp (ElmaFlex 430).
The unique EVSE function in the Elma 6100EVSE also converts the CP signal from the EVSE charging socket for electric cars directly into an ampere value. If it is used e.g. with the Elma EVSE-200 (available as an accessory on this page), the CP DutyCycle signal from the charger can be read directly as amperes, instead of the classic Hz% signal. So, set e.g. The Elma EVSE-200 CP switch on 32A, which simulates that the car is "asking" for 32A, and read the electric car charger's response to what it can offer, directly as e.g. 16A.
With the Bluetooth function and the free APP Elma Link, which is available for both iOS and Android, the Elma 6100BT becomes a safe and smart documentation tool. See your display directly on your Android/iOS device and take measurements at a safe distance from dangerous voltage. View and record all values, curves, directly on the phone. You can save and attach images with comments and share e.g., through e-mail.
Elma 6100EVSE has a large, illuminated display and is equipped with a powerful LED flashlight, data hold max/min and auto power off. The instrument meets EN61010-1 CAT III 600 V standards and is supplied with test leads, batteries and a manual.
Elma 6100EVSE multimeter with BT and CP EVSE
EAN 5706445840656
EL-NR 6398215064
In stock Few in stock Not in stock
166.00 EUR Ex. VAT
