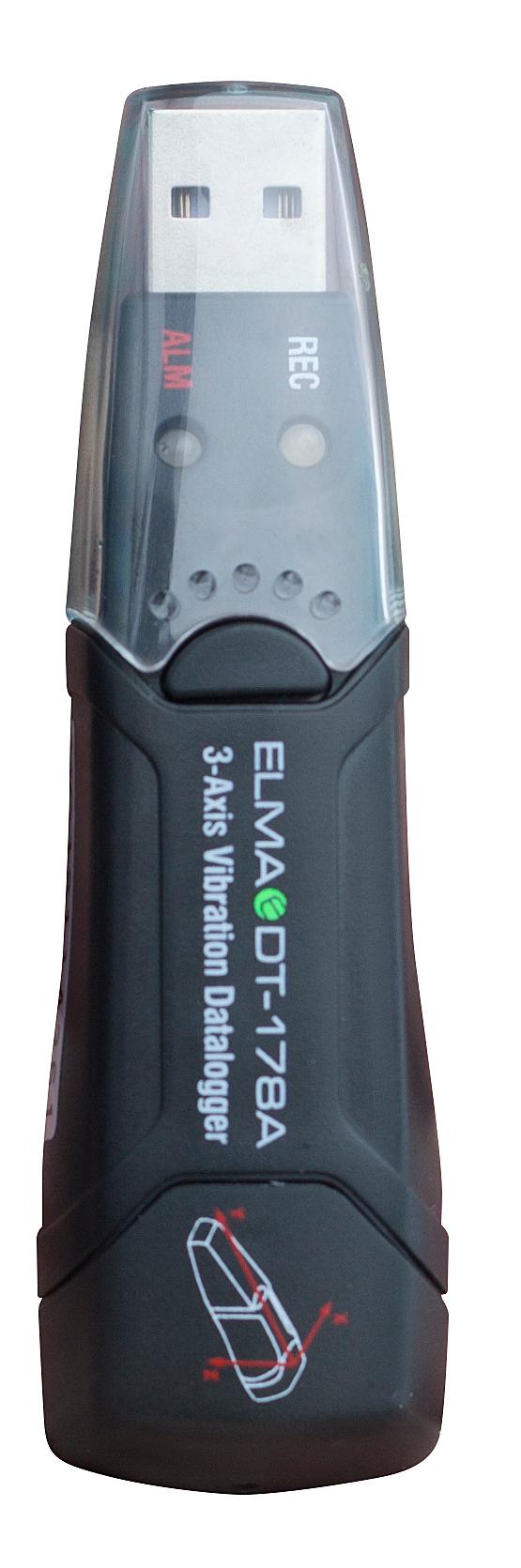

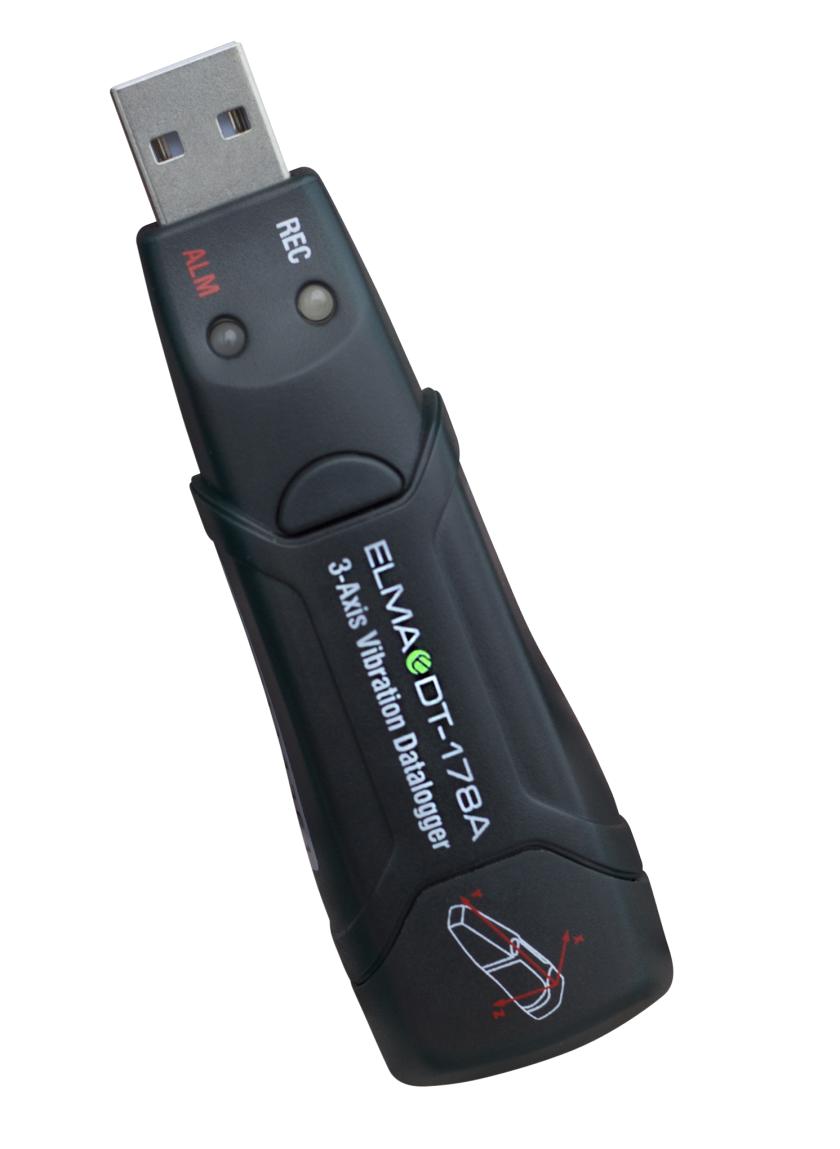

Elma DT178A Acceleration- and vibration data logger
3 axis mini data logger
241.00 EUR
Price incl. VAT 301.25 EUR
In stock Few in stock Not in stock
Create new list
Elma DT178A is a 3 axis acceleration- and vibration datalogger.
The instrument is suitable for documenting acceleration forces (g) from vibration and shock, e.g. in transport or production.
Elma DT178A records 3 axis data, providing a full documentation, available as a graph og list rapport from the free software. The logging interval can be set from 50ms to 12 hours. The instrument can also record online data to the software and FFT analysis.
The instrument is provided ready to use, incl. software, battery and surface mount.
Technical data:
-
Memory:Ja
-
Acceleration accuracy:±0.5g
-
Communication:USB
-
Acceleration range:±18g
-
Acceleration resolution:0.00625g
-
Battery life:400 timer
-
Bandwidth Hz:0 - 60Hz
-
Software included:Windows
-
Dimensions:130 x 30 x 25 mm
-
Operating temperature:0...40 °C.
-
Frequency update:256 Hz
-
Humidity range:≤ 90 %RH
-
Memory:504126 punkter
-
Height:Max 2000 m
-
Net weight:20 g
-
Sample time:50ms...12timer
-
Battery:1 pcs, Inkl.
-
Weight (g):20
-
Dimensions HxBxD (mm):130x30x25
