Elma CA 60 - Current Clamp for milliamps AC / DC
169.00 EUR
Price incl. VAT 211.25 EUR
In stock Few in stock Not in stock
Create new list

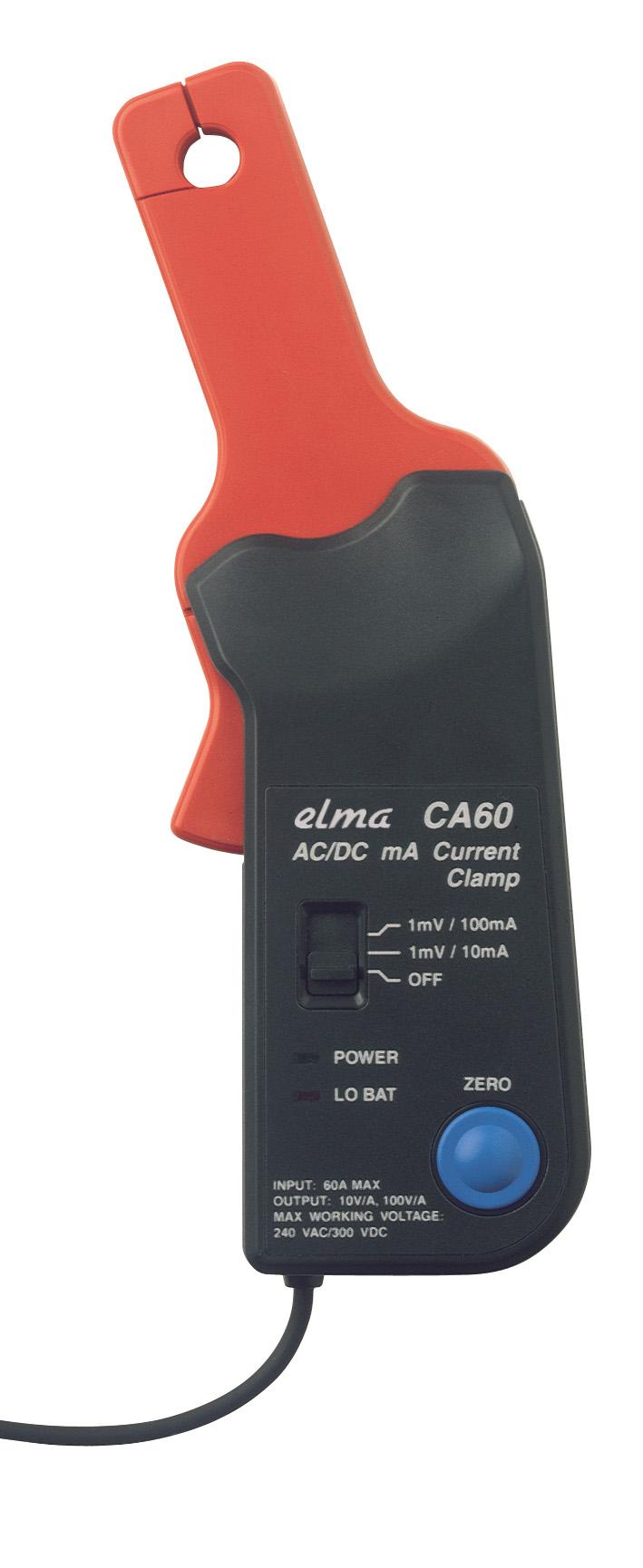

Elma CA 60 is a handy clamp especially suited for measuring small currents both AC and DC. The instrument has millivolt output and can be used with all instruments that have mV range.
Elma CA 60 meets IEC 61010-1 CAT II 300V and is equipped with LED indication for “on” and “low bat”. Incl. fixed test leads, battery and instruction manual.
Technical data:
-
Current Measurement, AC
-
Measurement range:0 A - 60 A
-
Current Measurement, DC
-
Measurement range:0 A - 60 A
-
Clamp width
-
Current Clamp Properties
-
Output signal:1 mV/10 mA,1 mV/100 mA
-
Connector:Ø4 banana plug
-
Standards and norms
-
Instrument:IEC/EN 61010-1,IEC/EN 61010-2-032
-
Safety category
-
IEC 61010-1 measurement category:CAT II 300 V
-
Power supply
-
Batteries:1 x E/PP3 (9 V) Alkaline (incl.)
-
Dimensions
-
H x W x D:195 mm x 70 mm x 33 mm
-
Weight
-
Net weight:250 g
