EAN 5706445140404 / EL-NR 6398167400

Elma 2200X voltage tester

Robust instrument with 30mA load test

121.00 EUR
Price incl. VAT 151.25 EUR

In stock Few in stock Not in stock

Buy now
PDF print
Create new list
Save

Elma 2200X is a re-invention of the voltage tester- again. Elma 2200X offers all the same and clever functions as the well-known Elma 2100X, but the test leads and instrument are en even more rugged quality. Furthermore the instrument can load the point of measurement, to discharge induced voltages, and for simple RCD test, providing a load of 30mA at 230V.

We've never seen so many clever functions in a simple voltage tester, making the instrument suitable for about every task an electrician meet, also when legislation demands to use a tester in compliance with the voltage tester directive.

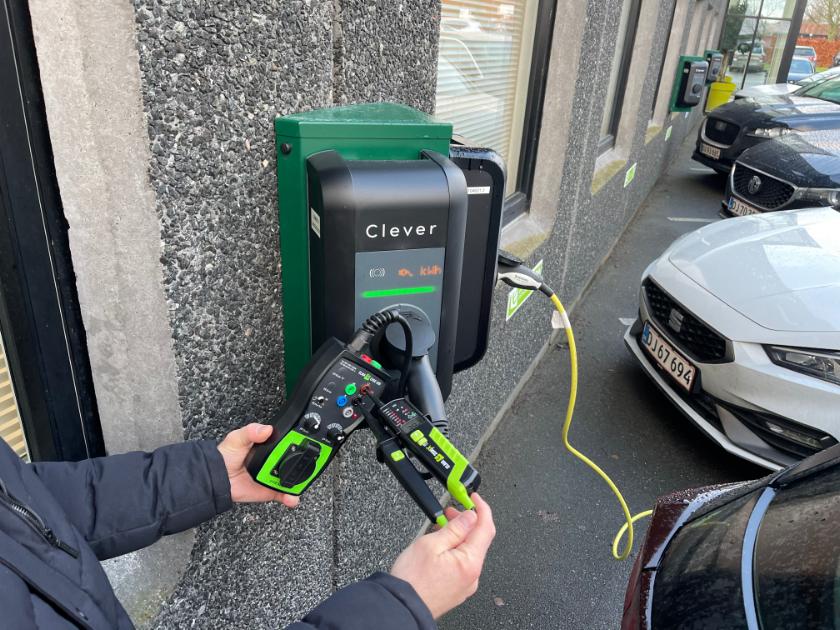

  • Perfect for measuring on charging sockets and charging stands EVSE for electric cars
  • Voltagetest, 2 pole with LED 12…1.000V AC/DC
  • Voltage measurement with digital display 6…1.000V/1.500V AC/DC
  • Continuity
  • Resistance 0-1999Ω
  • Single pole phase test
  • Phase rotation test
  • Large and bright display and bright LED's
  • Selftest and auto on/off function
  • LED warning when dangerous voltage
  • Fulfills voltage tester directive
  • Very rugged test leads

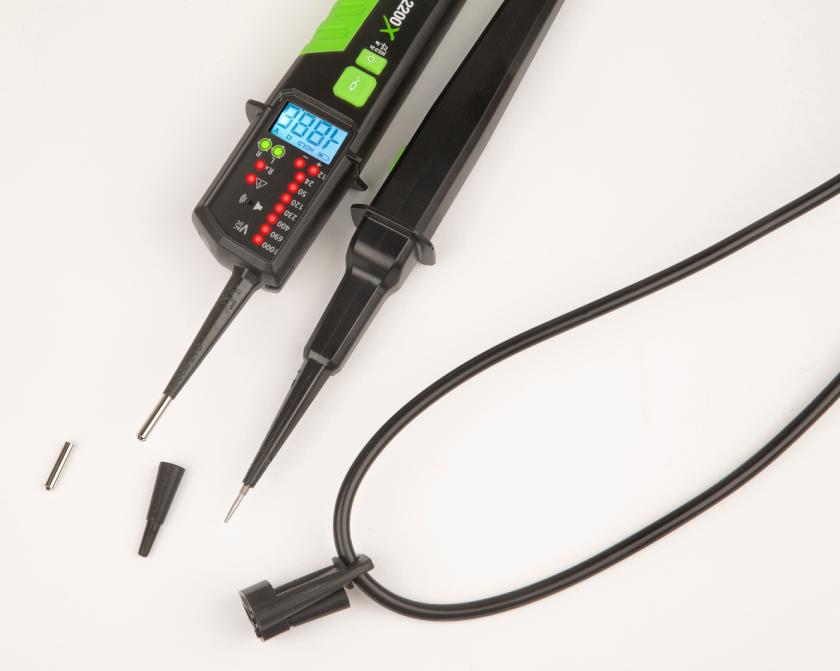

  • Changeable test tips 2/4mm
  • Bright torch light

Elma 2200X fulfills IEC 61010-1 KAT IV 600V / IEC 61243-3:2014 and is provided ready to use with batteries and manual.

Technical data:

  • Voltage Measurement, AC | Measurement range:
    6 V - 1000 V
  • Voltage Measurement, DC | Measurement range:
    6 V - 1500 V
  • Continuity check | Indicator/signal:
    Acoustic signal,Visual indication
  • Resistance measurement | Measurement range:
    0 Ω - 1999 Ω
  • Single-pole phase check | Voltage range:
    100 V - 1000 V
  • Single-pole phase check | Indicator/signal:
    Acoustic signal,Visual indication
  • Phase sequence/rotation | Voltage range:
    170 V - 1000 V
  • RCD trip test | RCD trip test:
    Yes
  • Display | Display:
    Digital display, backlit
  • IP Rating | IP rating:
    IP64
  • Power Supply | Batteries:
    2 x AAA Alkaline (incl.)
  • Dimensions | H x W x D:
    264 mm x 64 mm x 29 mm
  • Weight | Net weight:
    190 g
  • Safety category | IEC 61010-1 measurement category:
    CAT III 1000 V; CAT IV 600 V
  • Standards and norms | Instrument:
    IEC/EN 61010-1; IEC/EN 61243-3; IEC/EN 61326-1
  • Voltage test | Indicator (discharged battery):
    Visual (LED)
  • Voltage test | Voltage indication (LED):
    400 V,230 V,690 V,1000 V,24 V,12 V,50 V,120 V
  • Voltage test | Indicator:
    Display,Acoustic,Visual (LED)
